Specifications

Rated voltage VAC	250、500
Tolerance	±5%
Class of operation	10,000 h (Class B)
Class of operation	3,000 h (Class C)
Class of safety Protection	S0
Class of safety Protection	Formerly referred to as P0
Rated frequency f_ᴿ	50/60 Hz
Maximum permissible voltage Vₘₐₓ	1.1·V_ᴿ (V_ᴿ = Rated voltage)
Maximum permissible current Iₘₐₓ	1.3·I_ᴿ (I_ᴿ = Rated current)
AC test voltage terminal to terminal	2Un/60s
Insulation voltage terminals to case	2Un+1000VAC（≥2000VAC）60s
Dissipation factor tan δ at 20 ℃	≤0.0020 (100 Hz)
Climatic category	40/85/21、40/70/21

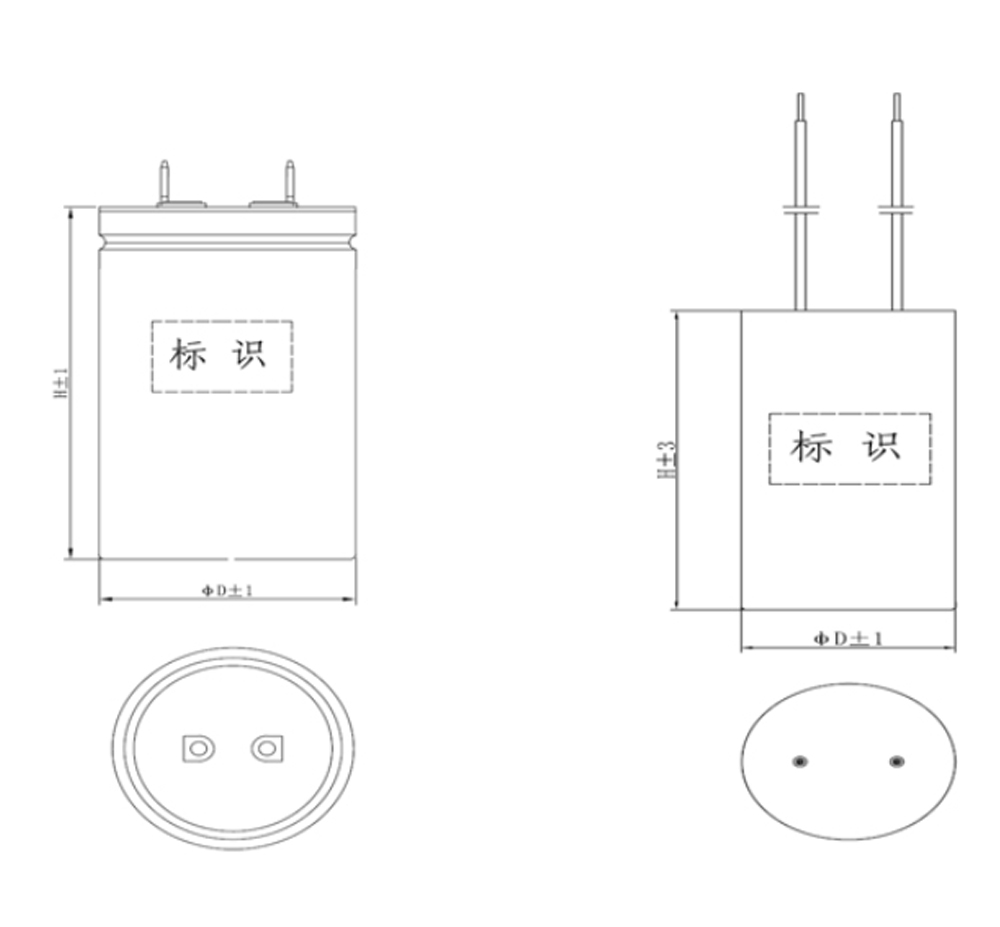

Outline Dimensions

Capacitance（μF）	Rated Voltage	Case dimensions	Outline Drawing
Capacitance（μF）	（Vac）	ΦD×H（mm） In	Outline Drawing
6	250	34×65（1.34×2.56）	B
7	250	34×65（1.34×2.56）	B
9	450	40×65（1.57×2.56）	B
12	450	40×65（1.57×2.56）	B
12	450	40×75（1.57×2.95）	A
8	280	42×60（1.65×2.36）	B
10	280	34×65（1.34×2.56）	B

NOTE: The specification and size are not limited to the above items. The design can be customized according to customer requirements.

◆ Product Advantages
- Specifically Designed for Washing Machine Motor Starting and Running: CBB60 series cylindrical plastic case capacitors are specially optimized for the single-phase AC motor characteristics of fully automatic impeller washing machines, drum washing machines, and top-load washing machines, reliably providing starting phase shift and running compensation to ensure smooth motor starting and efficient, stable operation, effectively preventing motor startup failures and operational anomalies
- S0 Safety Level with Intrinsically Safe Design: Product safety level is S0, representing the highest-grade non-explosive failure design where failure modes under abnormal conditions are mild and controllable, maximizing safety protection for other internal electrical components and users — a safety level specification recognized by mainstream international washing machine brands
- Low Dissipation with High Insulation Resistance: Extremely low dielectric loss and high insulation resistance result in minimal performance degradation after prolonged washing machine energized operation, ensuring consistently stable motor starting and running performance throughout the entire product lifecycle without anomalies caused by capacitor performance decline
- Good Self-Healing Performance with High Reliability: Using metallized polypropylene film with excellent self-healing characteristics that automatically restore insulation during occasional localized breakdown, preventing complete washing machine shutdown from single-point failures, greatly reducing early failure probability and lowering after-sales maintenance rates
- Cylindrical Plastic Case with Full Epoxy Resin Sealing for Strong Protection: Flame-retardant cylindrical plastic housing with full epoxy resin sealing process provides moisture-proof, vibration-proof, and corrosion-resistant protection, fully adapting to the harsh working environment of high humidity and continuous vibration inside washing machines

◆ Key Selling Points
- Washing Machine-Specific Model Verified by Mainstream Brand Manufacturers: Products validated by multiple domestic and international mainstream washing machine manufacturers with fully guaranteed reliability and consistency, suitable for direct large-volume OEM procurement
- In-Rush Current Resistance with Strong Overload Capability: Stably withstands large current impacts at the moment of washing machine startup and overload conditions during frequent switching between spin-dry and wash modes, without early damage from repeated impacts
- Stable Performance with High Batch Consistency: Strict process control and automated production ensure highly stable bulk supply quality with high capacitance accuracy and excellent consistency, suitable for direct use on automated assembly lines at appliance manufacturers
- Comprehensive Multi-Capacitance Specification Coverage: Available in multiple capacitance specifications from 1μF to 20μF and above, accommodating motor configuration requirements from small-power energy-efficient washing machines to large-power variable frequency washing machines

◆ Primary Applications
- Single-phase motor starting and running for fully automatic impeller washing machines
- Running capacitors for drum washing machine auxiliary motors
- Motor starting capacitors for semi-automatic washing machines
- Running capacitors for household dishwasher pump motors
- Motor configuration for commercial washing machines and industrial laundry equipment

Q: Which markets does the product mainly export to?

Our products are sold worldwide to 30+ countries and regions, including the United States, Germany, Japan, Spain, Italy, the United Kingdom, South Korea, Australia and Canada, etc.

Q: How to arrange the transportation of goods?

The main mode of transportation is by sea, which is convenient and efficient. If urgent delivery is required, we can also arrange air transportation through the Ningbo or Shanghai airports.

Q: What are the payment methods available?

During the quotation process, the trade terms (such as FOB, CIF, etc.) will be confirmed. For mass production, a 30% advance payment is usually required, and the remaining amount will be paid upon presentation of the copy of the bill of lading. The main payment method accepted is T/T, and L/C can also be negotiated for use.

Q: How to ensure product quality?

We implement full-process quality management. After each process, there is an inspection. The finished products are 100% subject to final inspection in accordance with customer requirements and international standards.

Q: What is the size of the company and its personnel structure?

AnHui JuanKuang Electric Co., Ltd. is CBB60 Capacitor for Washing Machine Motor (Cylinder Plastic Case) Factory. The company currently has over 300 employees, among whom there are about 10 professional technicians.

Q: Do you support customized production?

Customized production is our core business. We can develop and manufacture according to the drawings or samples you provide. Custom CBB60 Capacitor for Washing Machine Motor (Cylinder Plastic Case)

Q: Are you a factory or a trading company?

We are a direct manufacturer with independent production capabilities. We also have an international sales department to provide a complete service from production to export.

Q: How soon can I receive a reply after making an inquiry?

We attach great importance to every inquiry. We will reply within 12 hours after receiving the quotation.
