Reference standard	GB/T 17702; IEC61701
Climatic Category	40/85/56
Operating temperature（case）	-40℃~105℃ （+85℃ to +105℃：decreasing factor 1.5% per ℃ for Un.rms）
Operating temperature（case）
Rated RMS Voltage (Urms)	180Vac	250Vac	300Vac	350Vac
Rated AC voltage (Un)	250Vac	350Vac	425Vac	480Vac
Maximum continuous DC voltage	300Vdc	475Vdc	560Vdc	600Vdc
Capacitance Range	4.0μF~60.0μF	1.0μF~40.0μF	1.0μF~28.0μF	0.33μF~27.0μF
Capacitance Tolerance	J（±5%），K（±10%）
Voltage Proof	T-T:1.5Un（10S）　T-C:3000Vac(60S)
Insulation Resistance （IR×Cn）	≥3000s（20℃, 100Vdc, 1min）
Dissipation Factor	≤20×10⁻⁴（1KHz, 20℃）(typical value: 15×10⁻⁴)

Urms=180Vac, Un=250Vac, UNDC=300Vdc

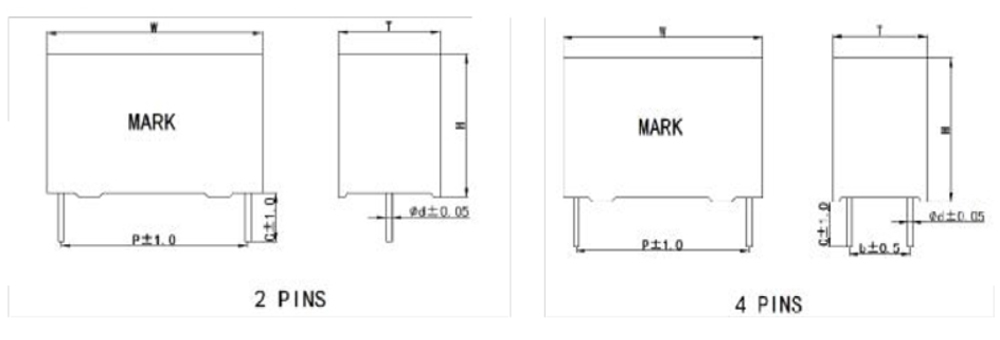

Cn(μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	Pins	d±0.05	Ls(nH)	ESR @10KHz（mΩ）	î（A）	îs（A）	Imax @70℃，10KHz（A）
4	32	22	13	27.5	-	2	1	16	6.7	280	840	7
10	32	33	18	27.5	-	2	1.2	20	2.7	700	2100	13
10	41	32	17	37.5	-	2	1.2	22	4.9	400	1200	10
15	41	37	22	37.5	-	2	1.2	24	3.3	600	1800	14
18	42	36	23	37.5	-	2	1.2	25	2.7	720	2160	14
20	42	36	23	37.5	-	2	1.2	25	2.5	800	2400	14
22	41	41	26	37.5	-	2	1.2	26	2.2	880	2640	14
25	41	41	26	37.5	-	2	1.2	27	2	1000	3000	14
33	42	45	30	37.5	-	2	1.2	29	1.5	1320	3960	14
40	57	43.5	29.5	52.5	-	4	1.2	26	2.6	800	2400	20
60	57	50	35	52.5	20.3	4	1.2	29	1.7	1200	3600	27

Urms=250Vac, Un=350Vac, UNDC=475Vdc
Cn(μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	Pins	d±0.05	Ls(nH)	ESR @10KHz（mΩ）	î（A）	îs（A）	Imax @70℃，10KHz（A）
1	32	18	9	27.5	-	2	1	20	19.3	90	270	3
5	32	33	18	27.5	-	2	1.2	23	3.9	450	1350	11
5	42	28	14	37.5	-	2	1.2	26	7.3	300	900	8
8	41	37	22	37.5	-	2	1.2	27	4.6	480	1440	12
18	41	43	28	37.5	-	2	1.2	31	2	1080	3240	14
22	42	45	30	37.5	-	2	1.2	33	1.7	1320	3960	14
30	57	43.5	29.5	52.5	20.3	4	1.2	32	2.7	900	2700	20
40	57	50	35	52.5	20.3	4	1.2	33	2	1200	3600	25

Urms=300Vac, Un=425Vac, UNDC=560Vdc
Cn(μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	Pins	d±0.05	Ls(nH)	ESR @10KHz（mΩ）	î（A）	îs（A）	Imax @70℃，10KHz（A）
1	32	20	11	27.5	-	2	1	16	15.9	100	300	4
2.2	32	24.5	15	27.5	-	2	1	18	8	220	660	7
2.5	32	28	14	27.5	-	2	1	19	7.2	250	750	8
4	32	33	18	27.5	-	2	1.2	21	4.6	400	1200	11
6.8	32	37	22	27.5	-	2	1.2	23	3.2	680	2040	14
3	41	26	15	37.5	-	2	1.2	22	10.1	210	630	6

Notice

Sizes above are normally, can be produced upon customer’s request.

Imax=Maximum r.m.s current at 10KHz , △θcase=15℃.

Urms=350Vac”used in 277Vac power supply voltage

“Urms=300Vac” as the power supply voltage fluctuation. The maximum a.c voltage is 300Vac, which is the maximum voltage when the power supply voltage (rated voltage is 240Vac) is in a fluction instead of the guarantee of a continuous voltage value.

◆ Product Advantages
• Excellent Self-Healing for Safety and Reliability: Using metallized polypropylene film with industry-leading self-healing capability, localized breakdown is instantly self-repaired, preventing complete failure from localized defects and significantly enhancing safety redundancy in AC filter systems
• Non-Inductive Winding Structure: Special non-inductive film winding process effectively suppresses high-frequency parasitic inductance, ensuring accurate LC or LCL resonant frequency and superior filtering characteristics
• Plastic Case with Full Epoxy Resin Sealing: UL94-V0 flame-retardant housing with full epoxy resin sealing provides moisture-proof and dust-proof protection with high mechanical strength, suitable for direct integration into PCBs or power modules
• Specially Optimized for Small-Power AC Filtering: Purpose-optimized for small-power AC output filter applications with excellent harmonic suppression and compact form factor

◆ Key Selling Points
• Precisely Suited for LCL Filter Architecture: Widely used in grid-connected inverter LCL filter circuits, helping to meet grid-connected harmonic current limit requirements (IEEE 1547, IEC 61727)
• Low Loss and Minimal Heat Generation: Low tanδ value ensures controlled temperature rise during prolonged AC current conduction without affecting surrounding components
• Multiple Lead Configurations: Various lead pitch and height specifications to accommodate different PCB design requirements
• International Certification Compliance: Meets IEC 61071, UL810, and other certification requirements

◆ Primary Applications
• LCL output filtering for photovoltaic grid-connected inverters
• AC filtering for small wind power inverters
• AC-side EMI filtering for industrial frequency converters
• UPS inverter output stage filtering
• Power circuits for Active Power Filters (APF)
