Reference Standard	GB/T 17702　IEC61701
Climatic Category	40/85/56
Operating emperature（case）	-40℃~105℃（+85℃ to +105℃: decreasing fator 1.35% per ℃ for Un.85℃）
Operating emperature（case）
Rated Voltage Un, 85°C	500Vdc, 600Vdc, 800Vdc, 900Vdc, 1000Vdc, 1100Vdc, 1200Vdc
Capacitance Tolerance	J(±5%), K（±10%）
Voltage Proof	1.5Un（10S）
Insulation Resistance (IR×Cn）	≥10000s （20℃，100Vdc，1min）
Insulation Resistance (IR×Cn）	≥10000s （20℃，100Vdc，1min）
Ls	＜1nH per mm of lead spacing
Maximum Peak Current Ip (A)	Ip=C*dv/dt
Expected lifetime	100,000hrs @ Un, θhs=70℃

Un 85℃: 500Vdc

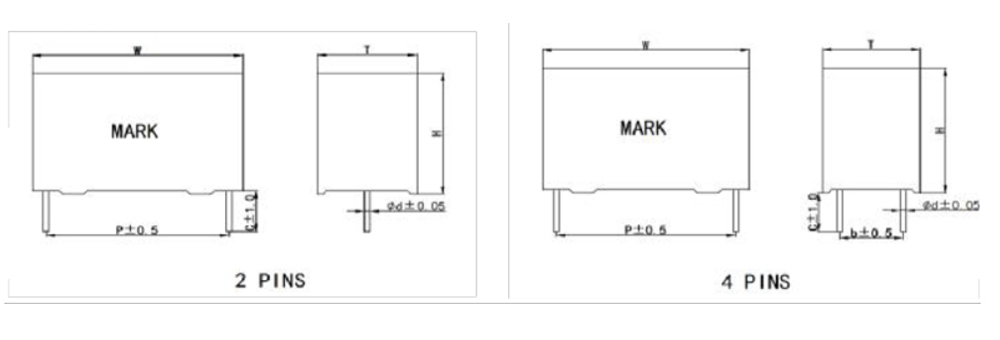

Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
5	32	20	11	27.5	-	0.8	65	10	100	8.5	5
10	32	24.5	15	27.5	-	0.8	65	10	100	7.5	6.5
30	42	40	20	37.5	10.2	1	30	15	150	5	14.5
50	41	43	28	37.5	12.7	1.2	30	15	150	4	16
80	57	43.5	29.5	52.5	20.3	1.2	15	35	350	5	16.5
100	57	50	35	52.5	20.3	1.2	15	35	350	4	18
110	57	50	35	52.5	20.3	1.2	15	35	350	4	19

Un 85℃: 600Vdc
Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
2	32	18	9	27.5	-	0.8	65	11	100	47.8	2.8
5	32	22	13	27.5	-	0.8	65	11	100	19.1	6.9
10	32	30	16	27.5	-	0.8	65	11	100	11.1	11.8
15	32	37	22	27.5	10.2	0.8	65	11	100	7.4	17.8
20	42	40	20	37.5	10.2	1	30	20	175	9.8	12.3
30	42	44	24	37.5	12.7	1	30	20	175	6.5	18.5
40	42	45	30	37.5	20.3	1.2	30	20	175	5.2	23
55	42	50	35	37.5	20.3	1.2	30	20	175	3.8	31.6
70	42	55	40	37.5	20.3	1.2	30	20	175	3	35
85	42	60	45	37.5	20.3	1.2	30	20	175	2.5	35
40	57	45	25	52.5	12.7	1.2	15	36	350	9.8	12.3
55	57	43.5	29.5	52.5	12.7	1.2	15	36	350	7.1	16.9
70	57	50	35	52.5	20.3	1.2	15	36	350	5.6	21.5
85	57	55	45	52.5	20.3	1.2	15	36	350	4.8	25.1
100	57	55	45	52.5	20.3	1.2	15	36	350	4.2	28.7
140	57	65	45	52.5	20.3	1.2	15	36	350	3	35

Un 85℃: 800Vdc
Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
2	32	18	9	27.5	-	0.8	65	10	95	45.4	2.9
5	32	24.5	15	27.5	-	0.8	65	10	95	18.2	7.3
10	32	37	22	37.5	-	0.8	65	10	95	11	12
14	32	37	22	27.5	-	0.8	65	10	95	8.2	12
10	41	33.5	18.5	37.5	-	1	30	18	160	17.8	6.7
15	42	40	20	37.5	10.2	1	30	18	160	11.9	10.1
20	42	44	24	37.5	12.7	1	30	18	160	8.9	13.5
25	42	44	24	37.5	12.7	1	30	18	160	7.1	16.8
35	42	50	35	37.5	20.3	1.2	30	18	160	4.8	25.1
50	42	55	40	37.5	20.3	1.2	30	18	160	3.8	31.4
65	42	60	45	37.5	20.3	1.2	30	18	160	2.9	35
25	57	45	25	52.5	12.7	1.2	15	33	320	14.3	8.4
35	57	45	25	52.5	12.7	1.2	15	33	320	10.2	11.8
50	57	50	35	52.5	12.7	1.2	15	33	320	7.1	16.8
65	57	55	45	52.5	20.3	1.2	15	33	320	5.5	21.9
100	57	65	45	52.5	20.3	1.2	15	33	320	3.8	31.4
110	57	65	45	52.5	20.3	1.2	15	33	320	3.5	34.5

Un 85℃: 900Vdc
Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
1	32	18	9	27.5	-	0.8	70	9	90	86	1.5
5	32	22	13	27.5	-	0.8	70	9	90	28.7	4.6
10	32	37	22	37.5	-	-0.8	70	9	90	12	12.2
10	42	40	20	37.5	10.2	1	35	17	150	16.7	7.2
20	42	44	24	37.5	12.7	1	35	17	150	8.4	14.4
35	42	55	40	37.5	20.3	1.2	35	17	150	5.1	23.4
50	42	60	45	37.5	20.3	1.2	35	17	150	3.6	33.5
15	57	45	25	52.5	10.2	1.2	15	31	300	16.7	7.2
20	57	45	25	52.5	12.7	1.2	15	31	300	16.7	7.2
35	57	43.5	29.5	52.5	12.7	1.2	15	31	300	9.6	12.6
50	57	50	35	52.5	20.3	1.2	15	31	300	6.7	17.9
65	57	55	45	52.5	20.3	1.2	15	31	300	5.1	23.3
85	57	65	45	52.5	20.3	1.2	15	31	300	4.2	28.5

Un 85℃: 1000Vdc
Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
1	32	18	9	27.5	-	0.8	75	8	80	76.4	1.7
5	32	30	16	27.5	-	0.8	75	8	80	15.3	8.6
8	32	37	22	27.5	12.7	0.8	75	8	80	10	13.3
5	41	30	16	37.5	-	1	37	15	140	31.2	3.8
8	41	33	18	37.5	-	1	37	15	140	19.5	6.2
10	42	40	20	37.5	-	1	37	15	140	15.6	6.7
30	42	55	40	37.5	20.3	1.2	37	15	140	5.2	23.1
40	42	60	45	37.5	20.3	1.2	37	15	140	4.2	28.7
15	57	45	25	52.5	12.7	1.2	17	28	280	20.8	20.8
35	57	50	35	52.5	20.3	1.2	17	28	280	8.9	13.5
55	57	55	45	52.5	20.3	1.2	17	28	280	5.2	21.1
70	57	65	45	52.5	20.3	1.2	17	28	280	4.5	26

Un.85℃：1100Vdc
Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
1	32	20	11	27.5	-	0.8	80	8	70	59.4	2.2
6	32	37	22	27.5	10.2	0.8	80	8	70	10.2	12.9
3	41	30	16	37.5	-	1	40	15	130	48.3	2.5
6	41	33.5	18.5	37.5	-	1	40	15	130	24.2	5
9	41	37	22	37.5	10.2	1	40	15	130	18.1	6.6
10	42	44	24	37.5	12.7	1	40	15	130	14.5	8.3
30	42	60	45	37.5	20.3	1.2	40	15	130	4.8	24.8
15	57	45	25	52.5	12.7	1.2	20	27	260	19.3	6.2
35	57	55	45	52.5	20.3	1.2	20	27	260	8.4	14.3
55	57	65	45	52.5	20.3	1.2	20	27	260	5.6	21.3

Un 85℃：1200Vdc
Cn (μF)	W±1.0	H±1.0	T±1.0	P±0.5	b±0.5	d±0.05	dv/dt (V/μs)	tgδ×(10⁻⁴)		ESR @10kHz(mΩ)	Imax(A)
								tgδ×(10⁻⁴)
								1kHz	10kHz
1	32	20	11	27.5	-	0.8	90	7	55	39.5	4.5
5	32	37	22	37.5	10.2	0.8	90	7	55	11.1	11.8
3	41	30	16	37.5	-	1	45	13	100	37.2	3.2
5	41	33.5	18.5	37.5	-	1	45	13	100	22.3	5.4
6	42	40	20	37.5	-	1	45	13	100	18.6	6.5
8	42	44	24	37.5	12.7	1	45	13	100	18.6	6.5
15	42	50	35	37.5	20.3	1.2	45	13	100	7.4	16.1
25	42	60	45	37.5	20.3	1.2	45	13	100	4.8	25.1
12	57	45	25	52.5	127	1.2	23	24	200	15.9	7.5
20	57	45	30	52.5	20.3	1.2	23	24	200	11.9	10
35	57	55	45	52.5	20.3	1.2	23	24	200	6.8	17.6
45	57	65	45	52.5	20.3	1.2	23	24	200	5.3	22.6

Notice

Sizes above is normally, can be produced upon the customer's request.

Imax=Maximum r.m.s current at 10KHz , △θcase=15℃.

◆ Product Advantages
• Non-Inductive Structure for Outstanding High-Frequency Performance: Metallized polypropylene film with non-inductive winding achieves extremely low equivalent series inductance (ESL), effectively suppressing voltage ripple in high-frequency DC filter applications and significantly improving power output quality
• Plastic Case with Epoxy Resin Encapsulation: UL94-V0 flame-retardant plastic housing with full epoxy resin sealing provides moisture-proof, vibration-proof, and corrosion-resistant protection for reliable operation in harsh industrial environments
• Direct Replacement for Electrolytic Capacitors: Can directly replace aluminum electrolytic capacitors in DC filter circuits — non-polarized, no liquid electrolyte, no risk of electrolyte dry-out, with service life far exceeding electrolytic capacitors
• PCB-Compatible Design: Standard lead pitch for direct PCB soldering simplifies circuit design and improves overall system reliability

◆ Key Selling Points
• High-Performance DC Filtering: Specifically designed for industrial power supplies, frequency converters, and solar inverters with stable filtering performance and strong ripple suppression capability
• Self-Healing Property for Long-Term Stability: Metallized film self-healing characteristic effectively handles occasional over-voltage events, ensuring long-term operational safety
• Wide Temperature Grade: Meets industrial-grade operating requirements from -40°C to +105°C
• RoHS Compliant: Lead-free and halogen-free materials meet international environmental standards

◆ Primary Applications
• DC bus filtering for industrial switching power supplies
• DC-side filtering for photovoltaic solar inverters
• Decoupling and filtering on the DC side of frequency converters
• High-end UPS uninterruptible power supplies
• Medical power supplies and precision instrument power filtering
