Reference Standard	GB/T 17702 IEC 61071
Climatic Category	40/70/21, 40/85/21
Operating Temperature	-40～85℃
Storage Temperature	-40～85℃
Rated Voltage	350Vac	460Vac	700Vac
Rated RMS Voltage	250Vac	330Vac	500Vac
Rated frequency	50/60Hz
Capacitance Tolerance	±5%;±10%
Test Voltage Between T-T	1.5Un (10s, 20±5℃)
Test Voltage Between T-C	3000Vac (10s, 20±5℃)
Life Expectancy	After 60000 hours at Urms, 50℃, △C/C≤5%
Mounting position	Terminals upright
Max.Altitude	2000m
Max.Torque of terminals	8Nm
Bottom bolt size	M8×10(D≤50)	M10×12(D=55)	M12×16(D≥60)
Max.Torque of installation	5Nm	7Nm	10Nm

Un=350Vac Urms=250Vac

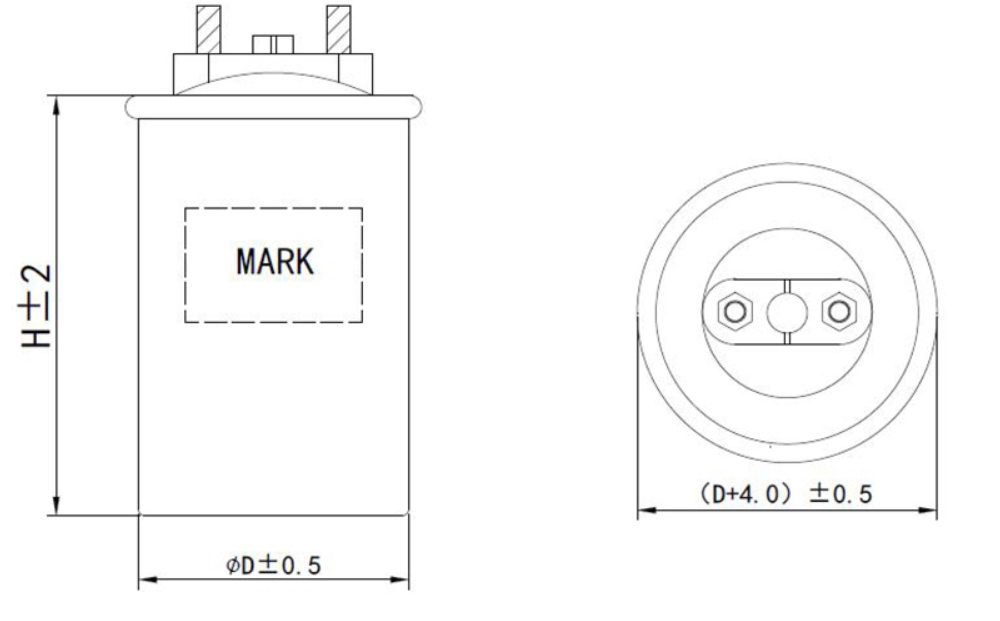

Cn (μF)	D±1 (mm)	H±2 (mm)	P±1 (mm)	Rs (mΩ)	Ls (nH)	Rthhc (℃/W)	Imax (A)	î (KA)	Is (KA)	Weight (Kg)
15	40	65	16	11.5	80	21.8	9	0.4	1.3	0.15
20	40	75	16	13.9	100	18.7	9	0.4	1.2	0.17
25	40	75	16	11.1	100	17.7	10	0.5	1.5	0.17
30	40	75	16	9.3	100	16.8	11	0.6	1.8	0.17
35	45	75	18	8	100	15.9	13	0.7	2.1	0.2
40	50	75	18	7	100	15.2	14	0.8	2.4	0.2
50	50	75	18	5.6	100	14.1	14	1	3	0.2
60	55	75	20	4.7	100	13.2	16	1.2	3.6	0.3
80	60	75	20	3.5	100	11.9	16	1.6	4.9	0.3
100	60	90	20	4.1	120	9.8	16	1.5	4.6	0.4
120	60	105	20	5.5	150	8.6	16	1.3	3.9	0.4
140	60	115	20	6.1	170	7.8	16	1.3	3.8	0.4
150	76	120	35	4.4	140	7.3	25	2	5.9	0.7
160	76	120	35	4.1	140	7.1	26	2.1	6.3	0.7
180	76	130	35	4.8	160	6.6	25	1.9	5.8	0.8
200	76	130	35	4.3	160	6.3	27	2.1	6.4	0.8
230	76	145	35	5.2	190	5.7	26	1.9	5.8	0.8
250	76	145	35	4.8	190	5.5	27	2.1	6.3	0.8
300	76	200	35	2.3	140	4.4	45	3.9	11.7	1
350	76	200	35	2	140	4.1	50	4.6	13.7	1.1
400	85	200	35	1.7	140	4	54	5.2	15.6	1.3
500	85	220	35	1.8	160	3.5	57	5.4	16.1	1.4
600	85	230	35	1.7	170	3.1	62	5.9	17.7	1.4

Un=330Vac Urms=460Vac
Cn (μF)	D±1 (mm)	H±2 (mm)	P±1 (mm)	Rs (mΩ)	Ls (nH)	Rthhc (℃/W)	Imax (A)	î (KA)	Is (KA)	Weight (Kg)
15	40	65	16	11.9	80	19.7	9	0.5	1.6	0.13
20	40	75	16	14.3	100	16.9	9	0.5	1.5	0.15
25	45	75	18	11.4	100	15.6	10	0.6	1.9	0.18
30	50	75	18	9.5	100	14.7	11	0.8	2.3	0.21
35	50	75	18	8.2	100	13.9	12	0.9	2.6	0.21
40	55	75	20	7.2	100	13.3	13	1	3	0.25
50	60	75	20	5.7	100	12.3	14	1.3	3.8	0.29
60	60	90	20	7	120	10.4	16	1.14	3.4	0.33
80	60	105	20	8.3	150	8.7	16	1.07	3.2	0.4
100	76	120	35	6.7	150	7.4	20	1.6	4	0.7
120	76	120	35	5.6	140	6.8	23	1.9	5.8	0.7
140	76	145	35	8.6	190	6	19	1.4	4.3	0.8
150	76	145	35	8.1	190	5.8	20	1.6	4.7	0.8
160	76	145	35	7.6	190	5.7	21	1.7	5	0.8

Un=330Vac Urms=460Vac
Cn (μF)	D±1 (mm)	H±2 (mm)	P±1 (mm)	Rs (mΩ)	Ls (nH)	Rthhc (℃/W)	Imax (A)	î (KA)	Is (KA)	Weight (Kg)
180	76	145	35	6.7	190	5.3	23	1.9	5.6	0.8
200	76	200	35	1.7	150	4.4	51	3.2	9.7	1.1
230	76	200	35	1.5	140	4.1	57	3.7	11.1	1.1
250	85	200	35	1.4	140	4.2	59	4	12.1	1.3
300	85	200	35	1.2	140	3.8	67	4.8	14.5	1.3
350	85	220	35	1.3	160	3.4	67	4.6	13.9	1.4
400	85	250	35	1.5	190	3.1	64	4.1	12.4	1.6

Un=700Vac Urms=500Vac
Cn (μF)	D±1 (mm)	H±2 (mm)	P±1 (mm)	Rs (mΩ)	Ls (nH)	Rthhc (℃/W)	Imax (A)	î (KA)	Is (KA)	Weight (Kg)
15	50	75	18	15.8	100	15	9	0.5	1.5	0.22
20	55	75	20	11.9	100	13.7	11	0.7	2.1	0.26
25	60	75	20	9.5	100	12.7	13	0.9	2.6	0.3
30	60	90	20	11.5	120	10.7	13	0.8	2.3	0.34
35	60	90	20	9.9	120	10	14	0.9	2.7	0.35
40	60	105	20	13.7	150	9	13	0.7	2.2	0.4
50	76	120	35	4.3	140	7.4	25	1.1	3.3	0.7
60	76	120	35	3.7	140	6.8	28	1.3	3.9	0.7
70	76	145	35	5.5	190	6.1	24	1	3	0.8
80	76	145	35	4.8	190	5.7	27	1.1	3.4	0.8
90	76	145	35	4.3	190	5.4	29	1.3	3.8	0.8
100	76	200	35	1.1	140	4.4	62	2.2	6.5	1.1
133	85	200	35	0.9	140	4.1	62	2.9	8.6	1.3
150	85	200	35	0.8	140	3.8	73	3.3	9.8	1.3
200	85	220	35	0.8	160	3.2	75	3.6	10.7	1.4
250	85	250	35	0.9	190	2.9	75	3.5	10.6	1.6

Notice:

Rthhc means thermal resistance from capacitor hotspot to case under natural cooling conditions;

Ls means self-inductance;

î means peak-to-peak inrush current;

Imax means max. permitted current under different environment temperature;

Dimensions above are normally, but can be produced upon customer’s request.
