Reference Standard	GB/T 17702, IEC 61071
Climatic Category	40/85/56
Operating Temperature	-25～55℃
Storage Temperature	-40～85℃
Rated voltage	1,800Vdc
Rated capacitance	3000μF
Capacitance Tolerance	±10%
Test Voltage Between T-T	2700Vdc 10s (20±5℃)
Test Voltage Between T-C	5,000Vdc, 60s (20±5℃)
tgδ	0.002
IR×Cn	≥5000s(100Vdc, 1min, 20±5℃)
Over Voltage	1.1Un (30% of on-load-dur)
	1.15Un (30min/day)
	1.2Un (5min/day)
	1.3Un (1min/day)
	1.5Un (1,000 times / 100ms during the lifetime)
Max. ripple voltage	180V
Max. current	240A
Max. peak current	9.5KA
ESR	1.2mΩ
Ls	≤260nH
Max.Altitude during operation	≤2000m

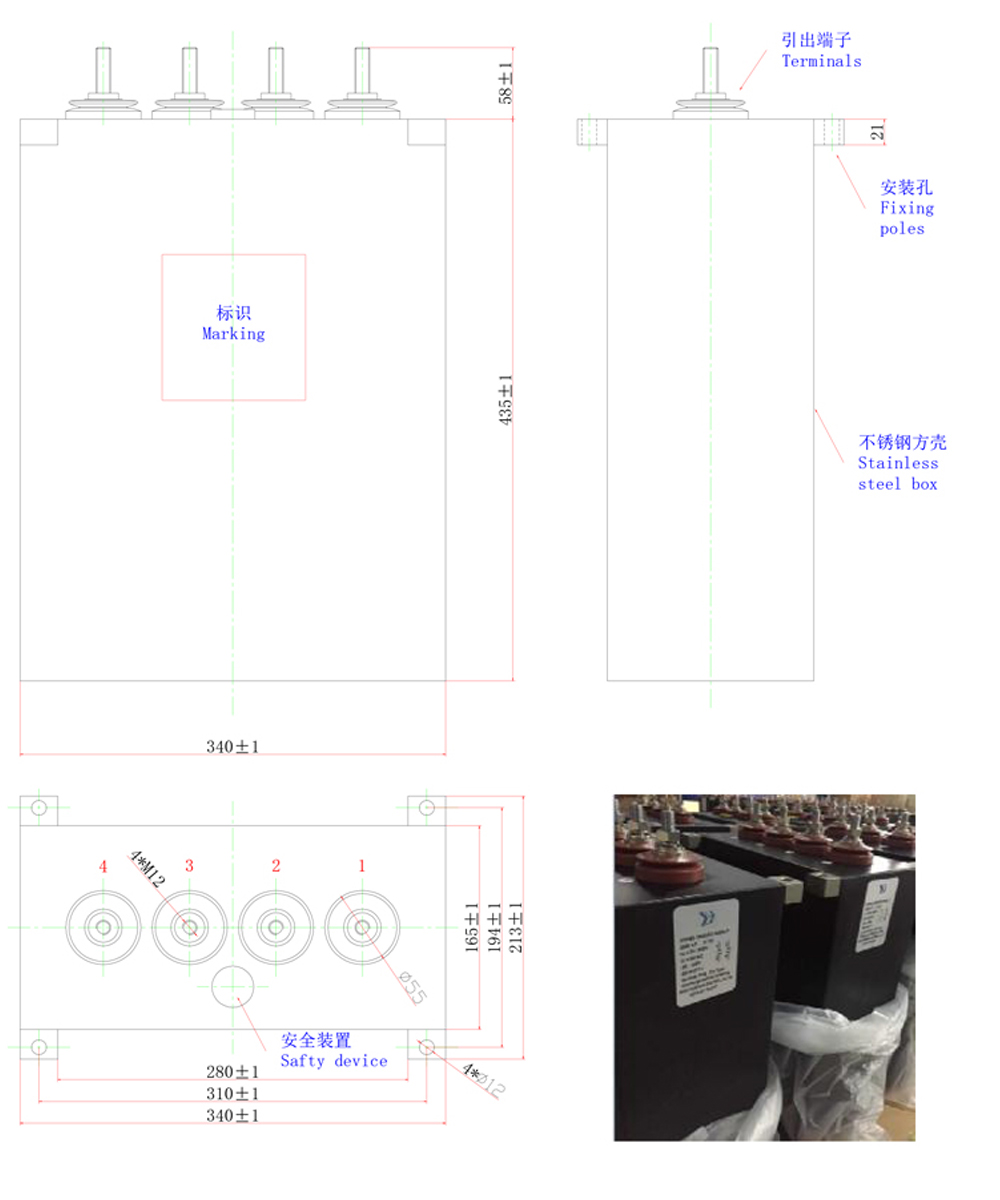

Max.Torque of terminals	M12: 10Nm
Max.Torque of installation	25Nm
Installation Direction	Any direction
Lifetime Expectancy	150,000 hours
Failure rate	50FIT

◆ Product Advantages
- Stainless Steel Case with Outstanding Corrosion Resistance: Premium stainless steel housing provides far superior acid-alkali and salt-spray corrosion resistance compared to aluminum or plastic case products, particularly suitable for variable frequency and inverter equipment in strongly corrosive environments such as the chemical industry, marine, and high-humidity applications, ensuring long-term stable operation under extreme conditions
- High Mechanical Strength with Vibration and Impact Resistance: Excellent mechanical strength of stainless steel housing withstands high-vibration and strong-impact operating conditions, meeting the mechanical reliability requirements of demanding applications such as offshore wind power, marine electrical systems, and industrial heavy-duty equipment
- Low ESR with High Ripple Current Handling Capability: Extremely low equivalent series resistance sustains significant ripple currents in DC filter circuits, effectively reducing inverter switching losses and improving overall system energy efficiency
- Low Inductance (Ls) for High-Frequency Interference Suppression: Non-inductive winding structure minimizes parasitic inductance, effectively suppressing high-frequency switching noise and voltage spikes, protecting the long-term reliability of IGBT and other power switching devices
- Reliable Self-Healing with Long-Life Design: Metallized film self-healing characteristic provides rapid self-repair capability after occasional over-voltage events; combined with the high durability of the stainless steel housing, this achieves an exceptionally long service life

◆ Key Selling Points
- Corrosion and Weather Resistant — Preferred Solution for Harsh Environments: Ideal choice for DC filtering in highly corrosive applications including offshore wind power, coastal photovoltaic installations, marine electrical systems, and chemical plants, with service life far exceeding aluminum case counterparts
- Fully Sealed Dry-Type Structure with Zero Leakage Risk: No liquid dielectric completely eliminates leakage contamination, with extremely low maintenance costs and suitable for maintenance-free system designs
- Wide Coverage Across Multiple Industrial Applications: Compatible with IGBT power modules, wind and solar inverters, electric vehicle drives, and welding equipment — a single product meeting requirements across multiple fields
- Customization Support Available: Housing dimensions, voltage rating specifications, and terminal configurations can be customized according to customer requirements to meet different system integration needs

◆ Primary Applications
- DC bus filtering for offshore wind power and coastal photovoltaic inverters
- DC filtering for marine electrical power systems
- Variable frequency drive equipment in chemical and metallurgical industries
- Snubber and filter capacitors for IGBT power modules
- Inverter power supplies for electric vehicles and industrial welding machines
