Reference Standard	GB/T 12747, IEC 60831
Climatic Category	40/85/56
Operating Temperature	-25～55℃
Storage Temperature	-40～85℃
Voltage Range	230Vac～525Vac, can up to 2000Vac
Capacitance Range	See attached
Capacitance Tolerance	±5%;±10%
Test Voltage Between T-T	2.15Un(10s,20±5℃)
Test Voltage Between T-C	3KVac or √2Un+1KVac which is higher(10s,20±5℃)
tgδ	≤0.001(20±5℃)
Max. Permitted Voltage	1.1Un
Max. Permitted Current	1.3In
Max.Altitude during operation	2000m
Max.Torque of terminals	M6:5Nm; M8:6Nm; M10:8Nm
Max.Torque of installation	10Nm

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension D*H mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
250VAC，50/60Hz Rated Voltage 250VAC, 50/60Hz
BKMJLK0.25-5-3	250	5	11.5	6	13.9	254.8	Φ76*167
BKMJLK0.25-10-3	250	10	23.1	12	27.7	509.6	Φ76*233
BKMJLK0.25-15-3	250	15	34.6	18	41.6	764.3	Φ86*248
BKMJLK0.25-20-3	250	20	46.2	24	55.4	1019.1	Φ86*353
BKMJLK0.25-25-3	250	25	57.7	30	69.3	1273.9	Φ96*353
BKMJLK0.25-30-3	250	30	69.3	36	83.1	1528.7	Φ106*353

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension D*H mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
400VAC，50/60Hz Rated Voltage 400VAC, 50/60Hz
BKMJLK0.4-10-3	400	10	14.4	12	17.3	157.3	Φ76*203
BKMJLK0.4-15-3	400	15	21.7	18	26	236	Φ76*248
BKMJLK0.4-20-3	400	20	28.9	24	34.6	314.5	Φ86*248
BKMJLK0.4-25-3	400	25	36.1	30	43.3	393.2	Φ96*278
BKMJLK0.4-30-3	400	30	43.3	36	52	471.8	Φ106*278
BKMJLK0.4-35-3	400	35	50.5	42	60.6	550.4	Φ116*278
BKMJLK0.4-40-3	400	40	57.7	48	69.3	629.1	Φ126*278
BKMJLK0.4-50-3	400	50	72.2	60	86.6	995.2	Φ136*278
450VAC，50/60Hz Rated Voltage 450VAC, 50/60Hz
BKMJLK0.45-10-3	450	10	12.8	12	15.4	168.5	Φ76*233
BKMJLK0.45-15-3	450	15	19.2	18	23.1	231.7	Φ76*248
BKMJLK0.45-20-3	450	20	25.7	24	30.8	308.9	Φ86*248
BKMJLK0.45-25-3	450	25	32.1	30	38.5	340.3	Φ96*278
BKMJLK0.45-30-3	450	30	38.5	36	46.2	408.3	Φ106*278
BKMJLK0.45-35-3	450	35	44.9	42	53.9	476.4	Φ106*278
BKMJLK0.45-40-3	450	40	51.3	48	61.6	566.8	Φ116*278
BKMJLK0.45-50-3	450	50	64.2	60	77	708.5	Φ126*278
480VAC，50/60Hz Rated Voltage 480VAC, 50/60Hz
BKMJLK0.48-10-3	480	10	12	12	14.4	169.2	Φ76*233
BKMJLK0.48-15-3	480	15	18	18	21.7	196.7	Φ76*278
BKMJLK0.48-20-3	480	20	24.1	24	28.9	262.2	Φ86*278
BKMJLK0.48-25-3	480	25	30.1	30	36.1	327.8	Φ96*278
BKMJLK0.48-30-3	480	30	36.1	36	43.3	408	Φ106*278
BKMJLK0.48-35-3	480	35	42.1	42	50.5	487.5	Φ116*278
BKMJLK0.48-40-3	480	40	48.1	48	57.7	590	Φ126*278
BKMJLK0.48-50-3	480	50	60.1	60	72.2	721.1	Φ136*278
525VAC，50/60Hz Rated Voltage 525VAC, 50/60Hz
BKMJLK0.525-10-3	525	10	11	12	13.2	145.9	Φ76*248
BKMJLK0.525-15-3	525	15	16.5	18	19.8	184.9	Φ76*278
BKMJLK0.525-20-3	525	20	22	24	26.4	246.6	Φ86*278
BKMJLK0.525-25-3	525	25	27.5	30	33	308.2	Φ96*278
BKMJLK0.525-30-3	525	30	33	36	39.6	382.2	Φ106*278
BKMJLK0.525-35-3	525	35	38.5	42	46.3	445.9	Φ116*278
BKMJLK0.525-40-3	525	40	44	48	52.8	520.5	Φ126*278
BKMJLK0.525-50-3	525	50	55	60	66	650.7	Φ136*278

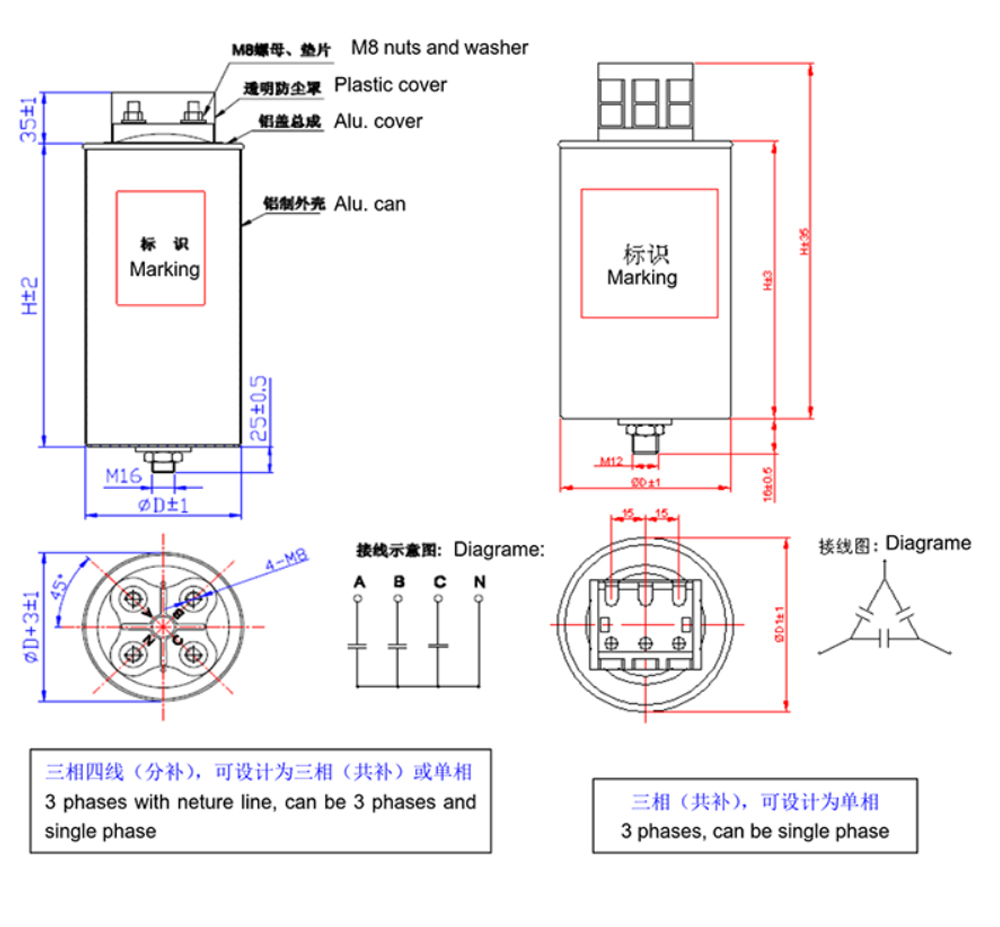

Dimensions of oil-filled products as per the list above.

Special designation upon customer's request.

Heavy duty designation

Reference Standard	GB/T 12747, IEC 60831
Climatic Category	40/85/56
Operating Temperature	-25～55℃
Storage Temperature	-40～85℃
Voltage Range	230Vac～525Vac, can up to 2000Vac
Capacitance Range	See attached
Capacitance Tolerance	±5%; ±10%
Test Voltage Between T-T	2.15Un(10s,20±5℃)
Test Voltage Between T-C	3KVac or √2Un+1KVac which is higher(10s,20±5℃)
tgδ	≤0.001(20±5℃)
Max. Permitted Voltage	1.15Un
Max. Permitted Current	1.5In
Max.Altitude during operation	2000m
Max.Torque of terminals	M6:5Nm; M8:6Nm; M10:8Nm
Max.Torque of installation	10Nm

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension D*H mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
250VAC，50/60Hz Rated Voltage 250VAC, 50/60Hz
BKMJYG0.25-5-3	250	5	11.5	6	13.9	254.8	Φ76*167
BKMJYG0.25-10-3	250	10	23.1	12	27.7	509.6	Φ76*278
BKMJYG0.25-15-3	250	15	34.6	18	41.6	764.3	Φ86*278
BKMJYG0.25-20-3	250	20	46.2	24	55.4	1019.1	Φ96*278
BKMJYG0.25-25-3	250	25	57.7	30	69.3	1273.9	Φ116*278
BKMJYG0.25-30-3	250	30	69.3	36	83.1	1528.7	Φ136*278
400VAC，50/60Hz Rated Voltage 400VAC, 50/60Hz
BKMJYG0.4-10-3	400	10	14.4	12	17.3	157.3	Φ76*203
BKMJYG0.4-15-3	400	15	21.7	18	26	236	Φ76*248
BKMJYG0.4-20-3	400	20	28.9	24	34.6	314.5	Φ86*248
BKMJYG0.4-25-3	400	25	36.1	30	43.3	393.2	Φ96*278
BKMJYG0.4-30-3	400	30	43.3	36	52	471.8	Φ106*278
BKMJYG0.4-35-3	400	35	50.5	42	60.6	550.4	Φ116*278
BKMJYG0.4-40-3	400	40	57.7	48	69.3	629.1	Φ126*278
BKMJYG0.4-50-3	400	50	72.2	60	86.6	995.2	Φ126*350

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension D*H mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
450VAC，50/60Hz Rated Voltage 450VAC, 50/60Hz
BKMJYG0.45-10-3	450	10	12.8	12	15.4	168.5	Φ76*233
BKMJYG0.45-15-3	450	15	19.2	18	23.1	231.7	Φ76*248
BKMJYG0.45-20-3	450	20	25.7	24	30.8	308.9	Φ86*248
BKMJYG0.45-25-3	450	25	32.1	30	38.5	340.3	Φ96*278
BKMJYG0.45-30-3	450	30	38.5	36	46.2	408.3	Φ106*278
BKMJYG0.45-35-3	450	35	44.9	42	53.9	476.4	Φ116*278
BKMJYG0.45-40-3	450	40	51.3	48	61.6	566.8	Φ126*278
BKMJYG0.45-50-3	450	50	64.2	60	77	708.5	Φ136*278
480VAC，50/60Hz Rated Voltage 480VAC, 50/60Hz
BKMJYG0.48-10-3	480	10	12	12	14.4	169.2	Φ76*233
BKMJYG0.48-15-3	480	15	18	18	21.7	196.7	Φ76*248
BKMJYG0.48-20-3	480	20	24.1	24	28.9	262.2	Φ86*278
BKMJYG0.48-25-3	480	25	30.1	30	36.1	327.8	Φ96*278
BKMJYG0.48-30-3	480	30	36.1	36	43.3	408	Φ106*278
BKMJYG0.48-35-3	480	35	42.1	42	50.5	487.5	Φ126*278
BKMJYG0.48-40-3	480	40	48.1	48	57.7	590	Φ136*278
BKMJYG0.48-50-3	480	50	60.1	60	72.2	721.1	Φ136*350
525VAC，50/60Hz Rated Voltage 525VAC, 50/60Hz
BKMJYG0.525-10-3	525	10	11	12	13.2	145.9	Φ76*248
BKMJYG0.525-15-3	525	15	16.5	18	19.8	184.9	Φ76*278
BKMJYG0.525-20-3	525	20	22	24	26.4	246.6	Φ86*278
BKMJYG0.525-25-3	525	25	27.5	30	33	308.2	Φ106*278
BKMJYG0.525-30-3	525	30	33	36	39.6	382.2	Φ106*278
BKMJYG0.525-35-3	525	35	38.5	42	46.3	445.9	Φ116*278
BKMJYG0.525-40-3	525	40	44	48	52.8	520.5	Φ136*278
BKMJYG0.525-50-3	525	50	55	60	66	650.7	Φ126*350

◆ Product Advantages
- Cylindrical Aluminum Case with Classic and Reliable Structure: Aluminum alloy cylindrical housing design provides robust construction, excellent sealing, and high protection rating, demonstrating outstanding environmental adaptability in industrial sites with significant temperature and humidity variations — a classic product form with an excellent reliability track record, long validated by the low-voltage reactive power compensation market
- Over-Pressure Safety Protection Device for Proactive Circuit Disconnection: Built-in automatic over-voltage circuit-breaking protection mechanism actively disconnects the circuit when the capacitor is subjected to excessive voltage, fundamentally eliminating explosion and fire risks from over-voltage conditions and fully protecting distribution equipment and on-site personnel
- Metallized Film Self-Healing Property for Significantly Extended Service Life: Advanced metallized polypropylene film rapidly self-heals to restore insulation after localized breakdown, effectively suppressing further propagation of localized defects, significantly improving product reliability with a design life exceeding 10 years under rated operating conditions
- Wave-Cutting Technology for Enhanced In-Rush Current Resistance: Proprietary wave-cutting process effectively improves the capacitor's ability to withstand grid in-rush currents during switching, reducing early damage caused by frequent switching and large in-rush currents, ensuring long-term stable operation of capacitors in automatic compensation devices
- Low Loss and Long Service Life to Reduce Total Lifecycle Cost: Premium film materials and precision manufacturing processes ensure low tanδ values with minimal heat generation and slow performance degradation during extended operation, effectively reducing maintenance costs associated with frequent capacitor replacement

◆ Key Selling Points
- High Market Maturity with Strong Compatibility with Mainstream Compensation Panel Dimensions: Product dimensions comply with industry-standard compensation panel installation specifications, enabling direct replacement of same-type capacitors in existing systems without cabinet structural modifications, reducing upgrade and replacement costs
- Flexible Configuration Supporting Multiple Compensation Solutions: Suitable for standalone individual compensation as well as multi-unit parallel or grouped switching configurations, flexibly adapting to various low-voltage reactive power compensation solutions including shared and split compensation schemes
- Integration with Reactors for Harmonic Filter Circuits: Supports series reactor connection to form anti-harmonic LC filter compensation groups, combining compensation and filtering functions in industrial grid environments with high harmonic content
- Comprehensive Multi-Specification Coverage for Convenient Selection: Available in multiple specifications from low to high capacitance with voltage coverage from 230V to 690V, meeting compensation capacity requirements of various projects with convenient and straightforward product selection

◆ Primary Applications
- Power factor compensation in industrial, mining, and commercial building low-voltage distribution systems
- Grouped automatic switching of capacitors in automatic reactive power compensation devices (APC)
- AC harmonic filter compensation circuits in combination with series reactors
- Bus reactive power compensation on substation low-voltage sides
- Reactive power compensation improvement at the end of rural and remote area grids
