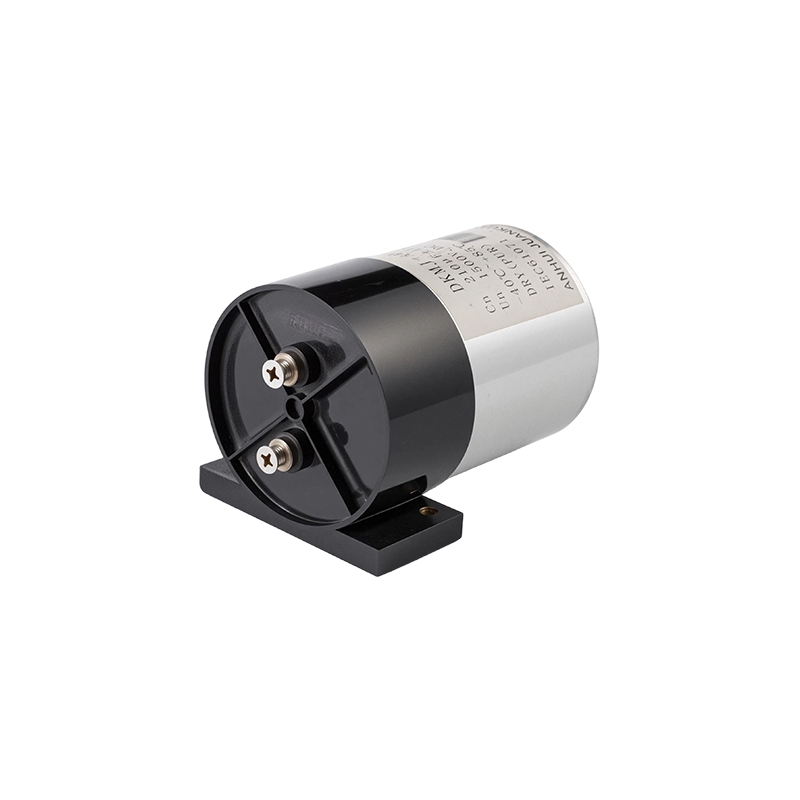

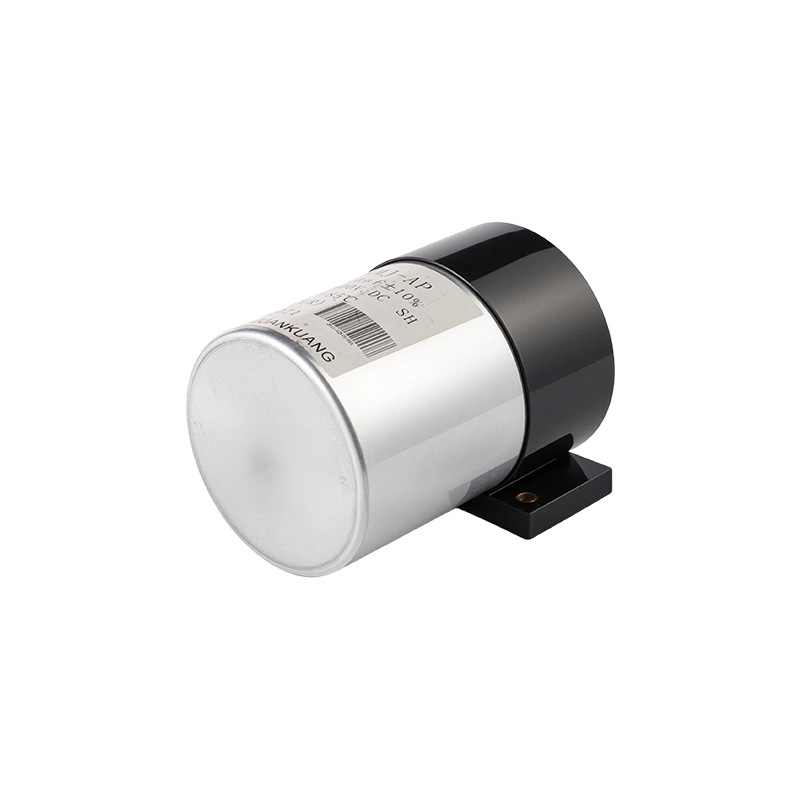

Reference Standard	GB/T 17702, IEC 61071
Climatic Category	40/85/56
Operating Temperature	-40～85℃
Storage Temperature	-40～85℃
Voltage Range	600Vdc～4000Vdc
Capacitance Range	24μF～5600μF
Capacitance Tolerance	±5%;±10%
Test Voltage Between T-T	1.5Un(10s,20±5℃)
Test Voltage Between T-C	Un＜1500Vdc,3000Vac(10s,20±5℃)
Test Voltage Between T-C	Un≥1500Vdc,√2Un+1000Vac(10s,20±5℃)
tgδ	≤0.002
IR×Cn	≥5000s(500Vdc,1min,20±5℃)
Over Voltage	1.1Un (30% of on-load-dur) 1.15Un (30min/day) 1.2Un (5min/day) 1.3Un (1min/day) 1.5Un (30ms every time,1000times during the life of the capacitor)




Max.Altitude	2000m
Max.Torque of terminals	M6:5Nm M8:6Nm
Max.Torque of installation	10Nm
Installation Position	Any Position
Lifetime Expectancy	100000Hours
Failure rate	50FIT

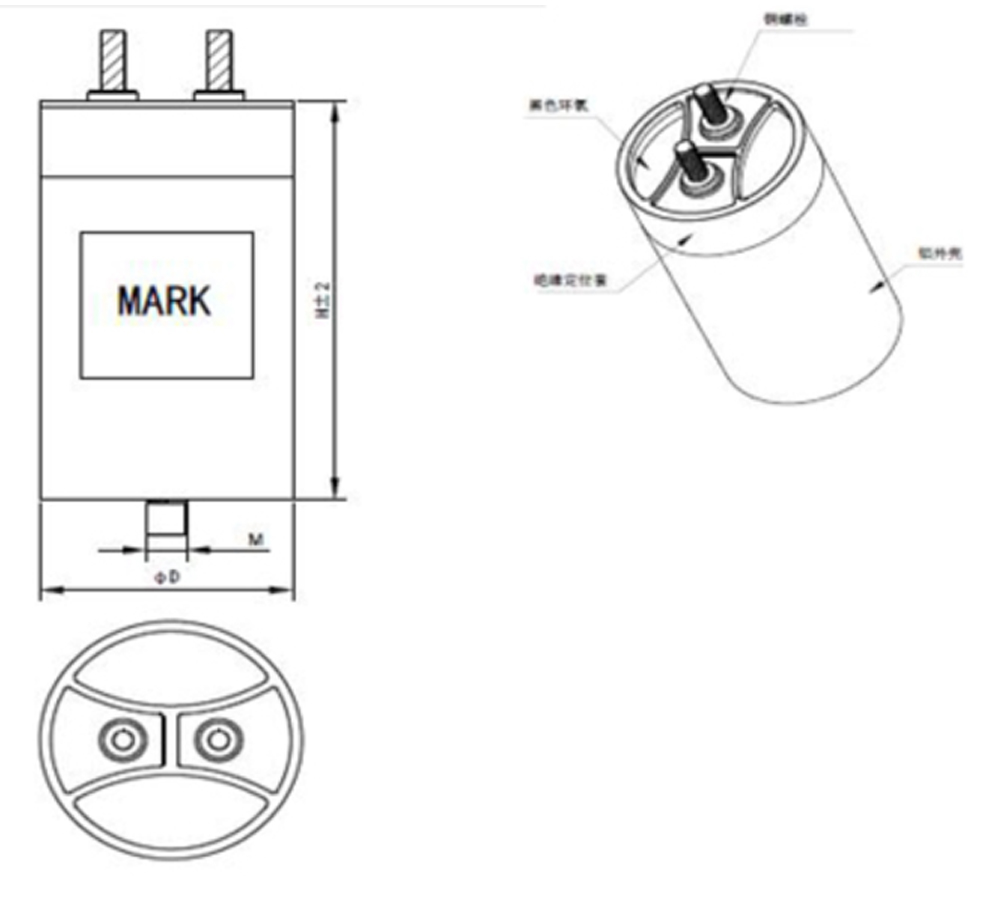

Un (Vdc)	Cn (μF)	ESR (mΩ)	Ls (nH)	î (A)	Imax(A) 40℃	Imax(A) 50℃	Imax(A) 60℃	Dimension φD(mm)	Dimension H(mm)	Dimension H1(mm)	Weight (Kg)
600Vdc	480	1.5	45	1560	70	65	55	76	95	101	0.61
	650	1.9	50	1560	70	63	53	76	120	126	0.7
	780	2.2	55	1550	67	59	50	76	140	146	0.75
	880	1.5	50	2110	70	70	60	86	120	126	1
	1000	1.8	55	2070	70	65	55	86	136	142	1.1
	1100	1.4	40	4110	70	70	64	86	155	161	1.25
	1500	1.6	55	2740	70	70	58	100	140	145	1.72
	2000	1.1	55	3960	80	80	67	116	140	145	1.75
	3000	0.8	50	11200	100	100	100	116	230	235	2.2
800Vdc	290	1.7	45	1530	69	61	51	76	95	101	0.6
	400	2.2	50	1530	66	58	49	76	120	126	0.7
	480	2.5	55	1560	63	55	47	76	140	146	0.75
	560	1.7	45	2910	70	70	59	76	174	180	1
	650	1.5	40	2030	70	62	60	86	155	161	1.25
	750	1.6	45	3940	70	70	60	86	174	180	1.3
	850	1.8	55	2700	70	66	54	100	140	145	1.68
	1000	1.1	45	5230	70	70	70	100	174	179	2.28
	1200	1.2	55	3860	80	77	65	116	140	145	1.75
	1800	0.8	50	10910	100	100	100	116	230	235	2.8
1100Vdc	180	2.3	45	1400	59	52	44	76	95	101	0.6
	250	3	50	1430	56	50	42	76	120	126	0.7
	300	3.5	55	1420	53	47	39	76	140	146	0.75
	360	2	45	2800	70	65	55	76	174	180	1
	420	2.3	55	2080	65	58	49	86	136	142	1.1
	550	2.1	55	2520	70	62	51	100	140	145	1.71
	650	1.2	45	4900	70	70	70	100	174	179	2.3
	780	0.9	40	6960	100	100	85	116	158	163	2
	920	1.1	45	7150	100	96	81	116	174	179	2.2
	1200	0.9	50	10710	100	100	100	116	230	235	2.8
1500Vdc	90	3.3	45	1220	49	44	37	76	95	101	0.6
	120	4.4	50	1200	47	41	35	76	120	126	0.7
	150	4.9	55	1230	45	39	33	76	140	146	0.75
	170	3.3	50	1690	54	48	40	86	120	126	1
	200	3	55	1720	57	50	43	86	136	142	1.1
	250	2.5	55	2140	64	55	45	100	136	141	1.63
	320	1.9	50	3180	68	60	51	116	120	125	1.5
	420	1.1	40	6550	100	94	79	116	158	163	2
	470	1.3	45	6280	89	79	66	116	174	179	2.2
	600	1	50	9200	100	89	75	116	230	235	2.8
2000Vdc	110	3.5	65	1830	48	42	35	86	140	146	1.05
	180	2.1	60	3660	70	61	52	116	120	126	1.6
	220	2.3	65	3660	69	60	51	116	140	145	1.85
	260	1.1	55	7360	100	93	79	116	174	179	2.3
	360	1	55	10200	100	99	81	136	175	180	3.15
	500	1.2	60	10100	100	98	80	136	225	230	3.9
	610	1	60	10100	100	98	80	136	265	270	4.5
2600Vdc	63	4.1	65	1730	43	38	32	86	140	146	1.05
	100	2.4	60	3370	64	57	48	116	120	126	1.6
	120	2.7	65	3310	63	55	47	116	140	145	1.85
	140	1.2	55	6570	98	87	73	116	174	179	2.3
	200	1.5	60	6750	99	87	73	116	225	230	2.85
	280	1.3	60	9590	100	93	76	136	225	230	3.9
	340	1.5	60	9380	100	92	76	136	265	270	4.5
3200Vdc	40	4.9	65	1470	40	35	30	86	140	146	1.05
	65	2.4	60	2930	67	59	50	86	225	231	1.65
	78	3.1	65	2870	59	52	44	116	140	145	1.8
	92	1.3	55	5760	94	83	70	116	174	179	2.3
	110	2.5	65	4050	67	58	47	136	140	145	2.45
	180	1.4	60	8110	100	89	72	136	225	230	3.85
	220	1.6	60	8100	100	88	72	136	265	270	4.45
4000Vdc	24	4.2	65	1650	42	37	32	86	140	146	1.1
	38	2.1	60	3230	70	62	53	86	225	231	1.7
	46	2.8	65	3160	61	54	46	116	140	145	1.9
	52	2.1	60	4420	71	62	50	136	120	125	2.25
	74	1.5	60	6290	96	85	72	116	225	230	3
	100	1.3	60	8500	100	90	73	136	225	230	4.05
	130	1.5	60	8940	100	91	37	136	265	270	4.65

Notice:

ESR means Equivalent Series Resistor;

Ls means self-inductance;

î means peak-to-peak inrush current;

Imax means max. permitted current under different environmental temperatures;

Dimensions above are normally, can be produced upon the customer’s requirement.

◆ Product Advantages
- Aluminum Alloy Case with High Mechanical Strength and Vibration Resistance: High-strength aluminum alloy cylindrical or rectangular housing provides excellent mechanical strength and strong resistance to vibration and shock, suitable for harsh vibration environments in industrial sites and new energy equipment with high protection ratings
- Dry-Type with No Liquid Dielectric: Unlike oil-filled capacitors, the dry-type structure completely eliminates the risk of liquid leakage, environmentally friendly and fully aligned with modern industrial equipment's clean operation requirements, with minimal maintenance costs
- Low ESR with High Ripple Current Capability: Extremely low equivalent series resistance enables handling of significant ripple currents in DC bus filter applications with controlled temperature rise, effectively reducing switching losses in frequency converters and inverters
- Self-Healing Property for Long-Term Reliability: Metallized film self-healing characteristic handles occasional over-voltage events, ensuring long-term stability of the DC filter circuit and meeting industrial-grade high-reliability requirements
- Low Inductance (Ls) Design: Non-inductive winding process minimizes parasitic inductance, suppressing high-frequency di/dt impulses and protecting power switching devices from surge damage

◆ Key Selling Points
- Wide Compatibility with New Energy and Industrial Variable Frequency Applications: Proven for DC bus filtering in wind power generation, photovoltaic inverters, electric vehicles, and industrial frequency converters with extensive application coverage
- Aluminum Case Available in Multiple Size Specifications: Various diameter and height specifications available to flexibly match different chassis and installation space requirements
- Excellent Heat Dissipation Performance: Good thermal conductivity of aluminum housing assists capacitor heat dissipation, particularly advantageous in high ripple current applications
- Customer Customization Support: Capacitance, voltage rating, terminal configurations, and mounting dimensions can all be customized according to customer requirements
- Fully Sealed Dry-Type Structure: No liquid dielectric eliminates leakage contamination risk, with strong environmental adaptability and extremely low maintenance costs

◆ Primary Applications
- DC bus filtering for wind power generation converters
- DC-Link filtering for photovoltaic grid-connected inverters
- Main drive inverters for electric and hybrid electric vehicles
- Inverter power supplies for industrial welding equipment
- DC filtering for elevator and crane variable frequency drives
