Reference Standard	GB/T 12747, IEC 60831
Climatic Category	40/85/56
Operating Temperature	-25～55℃
Storage Temperature	-40～85℃
Voltage Range	230Vac～525Vac, can up to 2000Vac
Capacitance Range	See attached
Capacitance Tolerance	±5%; ±10%
Test Voltage Between T-T	2.15Un(10s,20±5℃)
Test Voltage Between T-C	3KVac or √2Un+1KVac which is higher(10s,20±5℃)
tgδ	≤0.001(20±5℃)
Max. Permitted Voltage	1.1Un
Max. Permitted Current	1.3In
Max.Altitude during operation	2000m
Max.Torque of terminals	M6:5Nm; M8:6Nm; M10:8Nm
Max.Torque of installation	10Nm

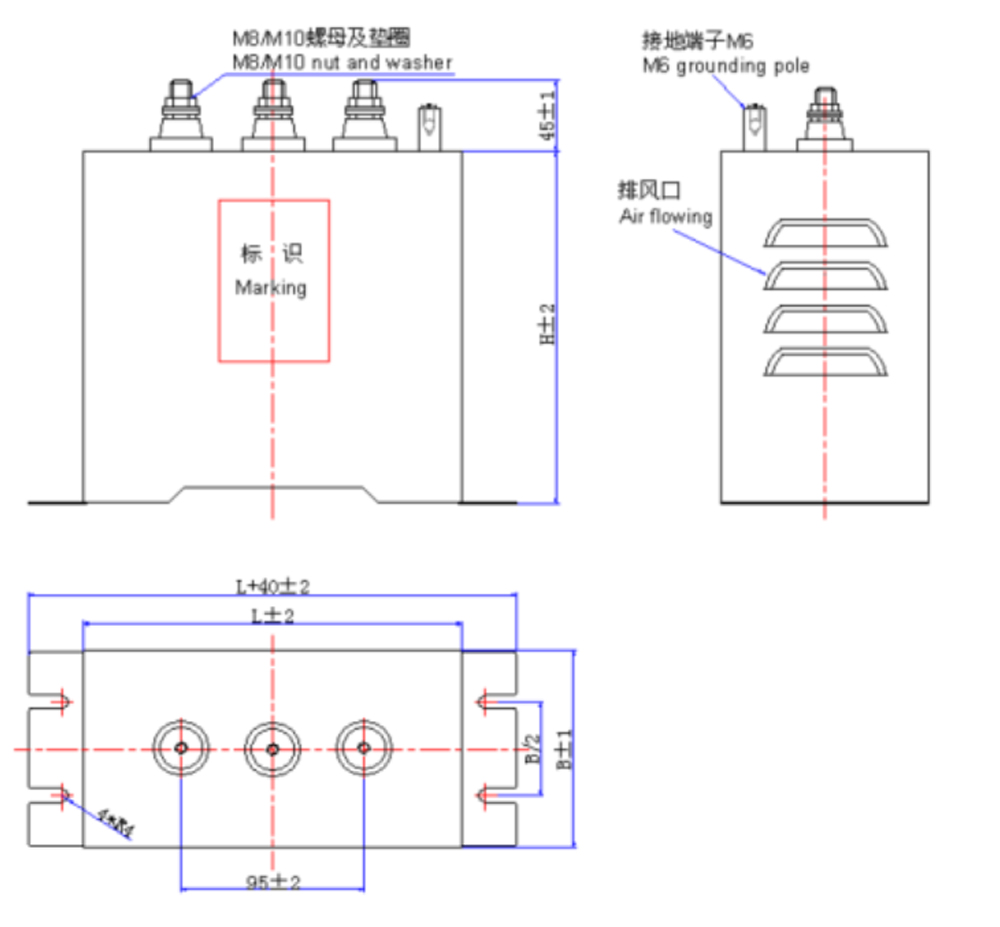

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension LBH mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
250VAC，50/60Hz Rated Voltage 250VAC, 50/60Hz
BKMJTK0.25-5-3	250	5	11.5	6	13.9	254.8	16055160
BKMJTK0.25-10-3	250	10	23.1	12	27.7	509.6	16055230
BKMJTK0.25-15-3	250	15	34.6	18	41.6	764.3	16055300
BKMJTK0.25-20-3	250	20	46.2	24	55.4	1019.1	19065300
BKMJTK0.25-25-3	250	25	57.7	30	69.3	1273.9	20068330
BKMJTK0.25-30-3	250	30	69.3	36	83.1	1528.7	200128250
400VAC，50/60Hz Rated Voltage 400VAC, 50/60Hz
BKMJTK0.4-10-3	400	10	14.4	12	17.3	157.3	19065155
BKMJTK0.4-15-3	400	15	21.7	18	26	236	19065195
BKMJTK0.4-20-3	400	20	28.9	24	34.6	314.5	20068230
BKMJTK0.4-25-3	400	25	36.1	30	43.3	393.2	19065300
BKMJTK0.4-30-3	400	30	43.3	36	52	471.8	20068300
BKMJTK0.4-35-3	400	35	50.5	42	60.6	550.4	190121250
BKMJTK0.4-40-3	400	40	57.7	48	69.3	629.1	190121300
BKMJTK0.4-50-3	400	50	72.2	60	86.6	995.2	200128330

Type	Voltage V	50Hz		60Hz		Capacitance μF	Dimension LBH mm


		Output kvar	Current A	Output kvar	Current A
		Output kvar	Current A	Output kvar	Current A
450VAC，50/60Hz Rated Voltage 450VAC, 50/60Hz
BKMJTK0.45-10-3	450	10	12.8	12	15.4	168.5	16055195
BKMJTK0.45-15-3	450	15	19.2	18	23.1	231.7	19065195
BKMJTK0.45-20-3	450	20	25.7	24	30.8	308.9	20068230
BKMJTK0.45-25-3	450	25	32.1	30	38.5	340.3	19065300
BKMJTK0.45-30-3	450	30	38.5	36	46.2	408.3	20068300
BKMJTK0.45-35-3	450	35	44.9	42	53.9	476.4	20068330
BKMJTK0.45-40-3	450	40	51.3	48	61.6	566.8	200128230
BKMJTK0.45-50-3	450	50	64.2	60	77	708.5	200128300
480VAC，50/60Hz Rated Voltage 480VAC, 50/60Hz
BKMJTK0.48-10-3	480	10	12	12	14.4	169.2	20068160
BKMJTK0.48-15-3	480	15	18	18	21.7	196.7	20068195
BKMJTK0.48-20-3	480	20	24.1	24	28.9	262.2	19065250
BKMJTK0.48-25-3	480	25	30.1	30	36.1	327.8	19065300
BKMJTK0.48-30-3	480	30	36.1	36	43.3	408	20068330
BKMJTK0.48-35-3	480	35	42.1	42	50.5	487.5	190121250
BKMJTK0.48-40-3	480	40	48.1	48	57.7	590	190121300
BKMJTK0.48-50-3	480	50	60.1	60	72.2	721.1	190121330
525VAC，50/60Hz Rated Voltage 525VAC, 50/60Hz
BKMJTK0.525-10-3	525	10	11	12	13.2	145.9	19065170
BKMJTK0.525-15-3	525	15	16.5	18	19.8	184.9	19065230
BKMJTK0.525-20-3	525	20	22	24	26.4	246.6	19065250
BKMJTK0.525-25-3	525	25	27.5	30	33	308.2	19065300
BKMJTK0.525-30-3	525	30	33	36	39.6	382.2	20068330
BKMJTK0.525-35-3	525	35	38.5	42	46.3	445.9	190121250
BKMJTK0.525-40-3	525	40	44	48	52.8	520.5	200128250
BKMJTK0.525-50-3	525	50	55	60	66	650.7	200128300

◆ Product Advantages
- Square Structure for High-Density Compensation Panel Installation: Standard square housing design enables neat and compact arrangement inside compensation panels, achieving high compensation density per unit space, maximizing cabinet utilization, effectively reducing distribution room footprint — practical and economical for both new and retrofit low-voltage power distribution systems
- Dual Protection: Safety Device and Self-Healing Function: Built-in mechanical over-pressure protection device automatically disconnects when the capacitor is subjected to excessive voltage, eliminating explosion and fire hazards at the source; metallized film simultaneously provides self-healing capability, automatically restoring insulation after localized breakdown — dual mechanisms ensuring long-term safe and stable operation
- Wave-Cutting Technology for Outstanding In-Rush Current Resistance: Proprietary wave-cutting film processing technology significantly enhances the capacitor's ability to withstand grid in-rush current surges at the moment of switching, reducing early failures caused by in-rush currents and extending the overall service life of capacitors and associated controllers
- Low Loss with Significant Energy-Saving Effect: Extremely low dielectric dissipation factor (tanδ) results in minimal heat generation and self-energy consumption during extended operation, delivering outstanding energy-saving and cost-reduction benefits, ideal for industrial and commercial power distribution users sensitive to operating costs
- Multi-Function Power Quality Improvement: In addition to reactive power compensation, simultaneously provides energy storage, three-phase voltage balancing, line loss reduction, and improvement of power system stability and efficiency, comprehensively enhancing low-voltage grid power quality

◆ Key Selling Points
- Significant Power Factor Improvement with Substantial Electricity Cost Savings: Effectively compensates reactive power in low-voltage power supply systems, improving power factor from below 0.7 to above 0.95, significantly reducing reactive current and decreasing transformer and line losses for considerable annual electricity cost savings
- Wide Compatibility with Automatic Compensation Control Panels: Compatible with mainstream domestic and international low-voltage reactive power compensation controllers (APC controllers), supporting grouped automatic switching control with fast response speed and high compensation accuracy
- Flexible Integration with Reactors for Filter Circuits: Supports series reactor configuration to form LC harmonic filter compensation units, suitable for complex grid environments containing harmonic sources such as frequency converters and rectification equipment, combining reactive power compensation with harmonic management
- Comprehensive Coverage of Multiple Voltage Ratings and Capacitance Specifications: Available in multiple rated voltages including 230V, 400V, 440V, and 525V, with capacitance ranging from several kvar to tens of kvar, meeting power distribution systems of different scales and requirements

◆ Primary Applications
- Reactive power compensation in factory workshop and industrial park low-voltage distribution systems
- Energy-saving retrofit for office buildings, commercial complexes, and data center power distribution
- Smart low-voltage automatic reactive power compensation devices (APC panels)
- Harmonic filter compensation units in combination with reactors
- Reactive power compensation on transformer low-voltage sides to improve distribution efficiency
